Compressed air measuring instruments
Dewpiont measurement:
FA 410 dewpiont sensor (-80 … +20 ºCtd)
FA 415 / FA 416
dewpoint
sensor
(-20 … +50 ºCtd)
FA 400
dewpoint
sensor, with display(-80
… +20 ºCtd)
FA 300 Ex-proof
dewpoint sensor
(-80 … +20 ºCtd)
DP 300
portable dewpoint instrument
Flow and consumption:
VA 400
flow
and consumption sensor（insertion type）
VA 410
flow
and consumption sensor(in-line)
Leak Detection:
LD 300
portable ultrasonic leak detector
Multi-function:
DS 300
display with logger function
DS 300-P
portable multi-function instrument
CS 2390
portable measuring instrument
For many years CS has
been a leading solution provider for compressed air measurement
technology.
We have recently renewed
and extended our product range. You are invited to browse through
this
web page where you can
find the right solutions for your measurement tasks. Besides product
specifications and technical data you can also find information
about the importance of measurement.
If you have any questions
or inquiries, please don't hesitate to contact us.
Thomas Fischer
(Managing Director, CS Instruments)
|
|
Dewpoint Measurement |
|
|
|

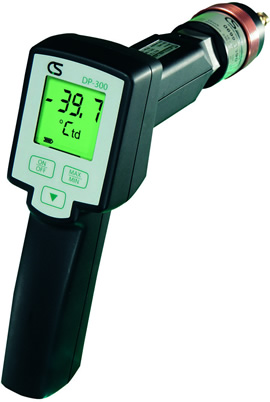

DP-300
portable dewpoint instrument set:
(-80 ... +50 °Ctd)
Include：
- DP 300 Instrument
- Standard
measuring chamber
- 1m Teflon
hose with quick connector
- Charger
- Case
P/N：0600.6001
Download brochure!
|
|
|

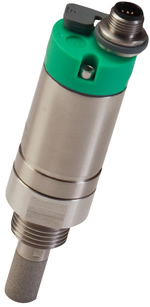

FA410 dewpoint
sensor (-80Ctd...+20Ctd)
|
Product Features |
|
·
- Dew point transmitter
for low dew point applications down to -80 ºCtd
- Long term stability
- IP65 casing provides robust protection in
rough industrial environment
- Very fast response time ensures safe and
reliable indication whenever dew points are out of
valid ranges
- Can be installed directly into dryers through
G 1/2” thread
- High accuracy of 2 ºCtd (see chart below)
|
|
0699 0410 |
FA
410, dew point transmitter including M12 connector
(straight type)
-80 ... +20 ºCtd, G 1/2” thread |
| 0553 0104 |
Connection cable 5m, 5
pole |
| 0553 0105 |
Connection cable 10 m,
5 pole |
|
Measuring
range |
-80 ...
+20 ºCtd
0 ... 100 % rH
-30 ... 70 ºC |
|
Accuracy |
2
ºCtd (see table below) |
|
Pressure
range |
-0.1
... 1.6 MPa |
|
Power
supply |
16
... 30 VDC / 60 mA |
|
Ambient
conditions |
0
... 50 ºC |
|
Response
time |
< 30 sec
(descending)
< 10 sec (ascending) |
|
Output
signal |
4…20
mA, 3-wire |
|
Connection |
M12,
5 pole |
|
Casing |
Zinc
alloy, PC + ABS |
|
Classification |
IP65 |
|
Process
connection |
G
1/2” thread (ISO 228/1) |
Download brochure!
|
|
 |
FA415/416
dewpoint sensor(-20Ctd...+50Ctd)
-
Affordable dew point
transmitter for mid range applications such as refrigerant
dryer monitoring
Long term stability
IP65 casing provides
robust protection in rough industrial environment
Very fast response time
ensures safe and reliable indication whenever dew points
are out of valid ranges
Can be installed directly
into dryers through G 1/2” thread
High
accuracy of 1... 2
ºCtd (see chart below)
On
site recalibration and check with CS calibration kit
Order
Details:
|
0699
0415 |
FA
415, dew point sensor including M12 connector (straight
type)
-20 ... +50 ºCtd, G 1/2” thread |
| 0699
0416 |
FA 416, dew point
switch including M12 connector (straight type)
-20 ... +50 ºCtd, G 1/2” thread. (alarm pre-programmed
ex factory) |
| 0553 0104 |
Connection cable 5m, 5
pole |
| 0553 0105 |
Connection cable 10 m,
5 pole |
Specification:
|
Measuring
range |
-20
... +50 ºCtd
0 ... 100 % rH
-30 ... 70 ºC
|
| Accuracy |
1
... 2 ºCtd (see
table below) |
| Pressure
range |
-0.1
... 1.6 MPa |
| Power
supply |
10
... 30 VDC |
| Ambient
conditions |
0
... 50 ºC |
| Response
time |
< 30
sec (descending)
< 10 sec (ascending) |
| Output
signal |
4…20
mA two-wire (FA 415)
60 V, 0.5 A Relay (FA 416) |
| Connection |
M12,
5 pole |
| Casing |
Zinc
alloy, PC + ABS |
| Classification |
IP65 |
| Process
connection |
G
1/2” thread (ISO 228/1) |
Download Brochures!
|
|
Gas
Flow/Consumption
Measurement |
|
|
VA 400
VA 400 flow / consumption
sensor (insertion type)
Features:
- Insertion type sensor for
installations under pressure
- Thermal mass flow,
independent of pressure and temperature changes
- IP65 casing provides
robust protection in rough industrial environment
- Very fast response time
- High accuracy and wide
measuring range
- Tube diameters of 1/4”
to 12” . Other diameters on request
Specification:
|
Measured unit |
m3/h, m3/min, l/min,
cfm |
| Accuracy |
+- (3% of measured
value + 0.3% full scale) |
| Medium |
Air, gas, non
explosive |
| Operating temperature |
-30 ... 140 ºC probe
tube
-30 ... 70 ºC casing |
| Operating pressure |
Up to 50 bar |
| Analogue output |
Signal: 4 ... 20 mA
Scaling: 0 ... max range |
| Pulse output |
1 pulse per m3 |
| Power supply |
12 ... 30 VDC, 100 mA |
·
Volumemtric Flow
Ranges:
| Inch |
mm |
Standard
[m3/h] |
Max
[m3/h] |
| 1” |
27.3 |
0.5...150 |
0.6...320 |
| 2” |
53.1 |
2...600 |
2.5...1200 |
| 3” |
84.9 |
5...1600 |
7...3400 |
| 4” |
100.3 |
9...2700 |
12...5700 |
| 5” |
133.7 |
13...4000 |
18...8400 |
| 6” |
162.3 |
18...5800 |
25...12000 |
| 8” |
200.0 |
26...8800 |
33...18000 |
| 10” |
250.0 |
40...13700 |
52...29000 |
| 12” |
300.0 |
60...19800 |
80...40000 |
| Mentioned
flow rates are standard flows at 20 ºC and 1000 mbar |
Ordering Details:
| 0695 4000 |
VA 400, flow
sensor, standard range with display, 220 mm
shaft, ½” G thread |
| 0695 4001 |
VA 400, flow
sensor, standard range, 220 mm shaft, ½” G
thread |
| 0695 4003 |
VA 400, flow
sensor, max range with display, 220 mm shaft, ½”
G thread |
| 0695 4004 |
VA 400, flow
sensor, max range, 220 mm shaft, ½” G thread |
| 0553 0104 |
Connection
cable 5m, 5 pole |
| 0553 0105 |
Connection
cable 10 m, 5 pole |
|
Download brochure!
|
|
Ultrasonic
Leak Detector |
|
 |
LD 300
Ultrasonic Leak Detector
-NEW!

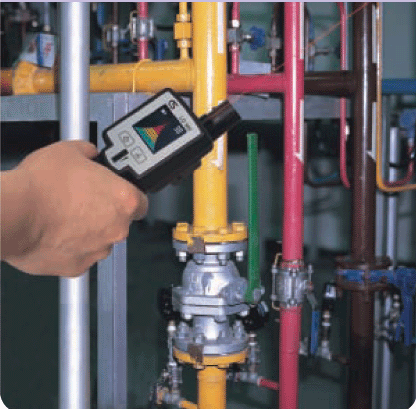

Operation Principle:
When
gases are leaking through tubes and tanks an ultrasonic
sound is produced which can be detected by LD 300 even
from several meter distance. LD 300 transforms these
inaudible signals into a frequency which can be easily
heard by using the supplied noise isolated headset. The
integrated laser pointer helps to spot the leak from
distance. In unpressurized systems an ultrasonic tone
generator can be used whose sound will leak through small
openings.
|
|

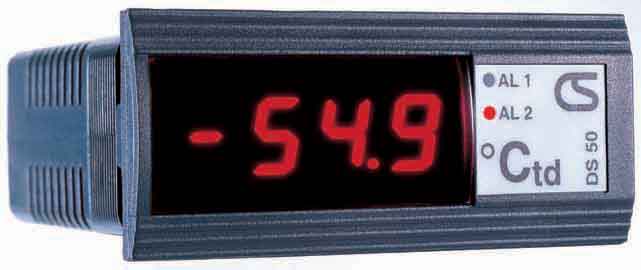

Displays |
|
 |
DS50
Display
70x29mm, 10...32VDC
Selectable units: Ctd,%,ppm,g/kg,g/m3,mg/m3
P/N: 0500 0001 |
|
 |

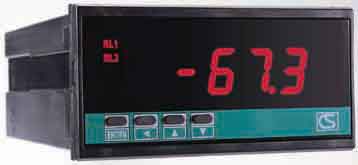

DS60
Display
96x48mm, 100...240VAC,
with
24VDC output,
2 relay outputs
P/N: 0699 1232 |
|
 |
PF2A
Digital
Flow Switch(Air)
- PFA
series
suitable for air and N2
-
Displays flow and accumulated
flow
-
Electronic flow switch with
LED display
- 2
outputs,
can set different flow values
-
Switch can select either NPN
or PNP
-
Waterproof,IP65
Different models:
0.5
- 10.5
l/min, 2.5 - 52.5 l/min, 5 - 105 l/min,
10 - 210 l/min, 25 - 525 l/min
|
|
 |
PF2W Digital
Flow Switch(for
water)
- PFw
for water
- Display
flow and accumulated flow
-
Electronic flow switch with
LED display
- 2
outputs,
can set different flow values
-
Switch can select either NPN
or PNP
-
Waterproof,IP65
Different
models: 0.5
- 4
l/min, 2 - 16 l/min, 5 - 40 l/min, 10 - 100 l/min
|
|
 |
PPA
Digital Pressure Instrument(compressed
air)
PPA100: -0.1 - 1MPa
,
high pressure
PPA100: -101 -
10kPa, vacuum
PPA100: -10 - 100kPa,
low pressure
|
|
